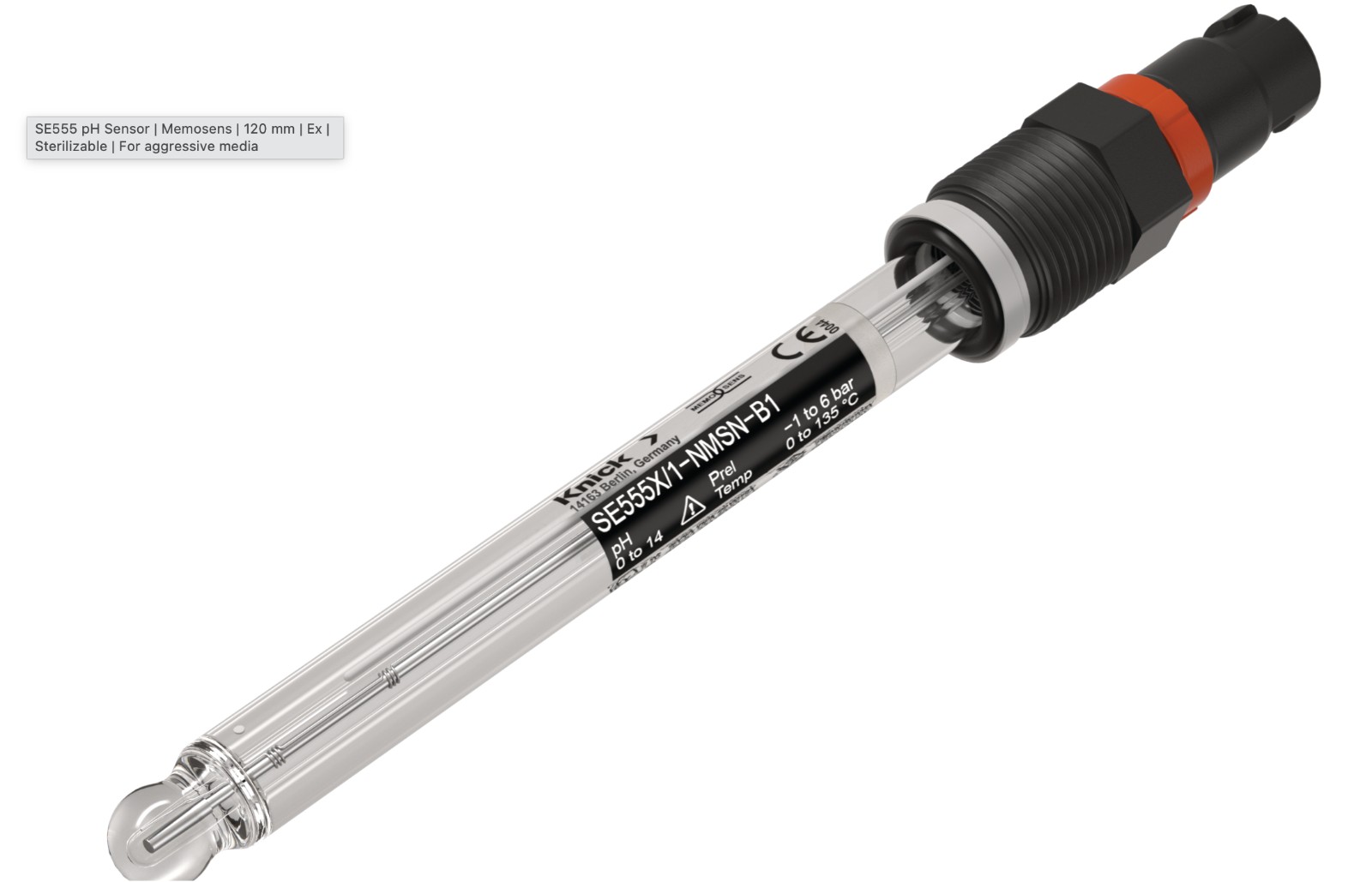

SE555 pH Sensor

The SE555 is a digital pH sensor engineered for demanding CIP/SIP processes, combining a high-impedance pH glass with low alkali error and a silver ion trap that protects the ceramic junction from sulfide fouling. Memosens digital connection technology delivers galvanic isolation, moisture-proof data transfer, integrated sensor diagnostics and lab precalibration, reducing downtime and maintenance effort. With Ex certification and a wide operating temperature and pressure range, it suits routine pH monitoring in fermentation, food and beverage processing, and other applications involving extreme pH or aggressive media.

Specifications

Measurement Parameter:

pH

Connector:

Memosens

Measuring Range:

0 … 14 pH

Explosion protection:

Yes

Length:

120 mm

Process Connection:

PG 13.5

Temperature:

0 … 135 °C

Pressure, relative:

-1 … 6 bar

Temperature Detector:

NTC 30 kΩ

Junction:

Ceramic (1×)

Reference System:

Ag/AgCl with silver ion trap

pH Glass:

Omega glass, high impedance, low alkali error

Electrolyte:

Gel electrolyte with pressure pads
