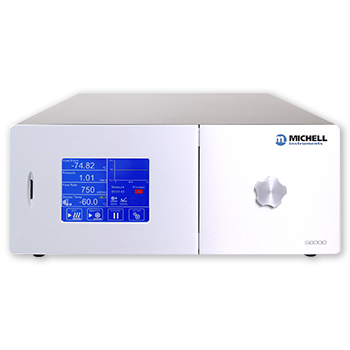

High Precision Chilled Mirror Hygrometer
Ultra-low dew point chilled mirror hygrometer delivering laboratory-grade reference accuracy down to -100 °C frost point.
The Michell S8000 -100 is a precision chilled mirror hygrometer designed as a reference standard for humidity calibration and standards laboratories. Its advanced dual optics system delivers fast, highly sensitive detection of condensate even at extremely low moisture levels, covering a frost/dew point range of -100 to +20 °C without additional cooling equipment. Fully automated operation, a touch-screen interface, and Modbus/analog outputs make it easy to integrate into calibration systems, while a built-in microscope allows visual verification of mirror condensate.
Specifications
- Accuracy
- ±0.1 °C (±0.18 °F)
- Measurement Range
- -100...+20 °C frost/dew point
- Reproducibility
- ±0.15 °C (±0.27 °Ffp) at -100 °C (-148 °Ffp) frost point
- Precision Measurement
- To -100 °C (-148 °F) frost point (13.8 ppb V) with no need for additional cooling
- Temperature Input
- External 4-wire Pt100 connections
- Communications
- Ethernet or USB connections
- Data Logging
- SD card data logging
- Interface
- Touch screen interface
- Package Size
- Compact 19” x 4U package
