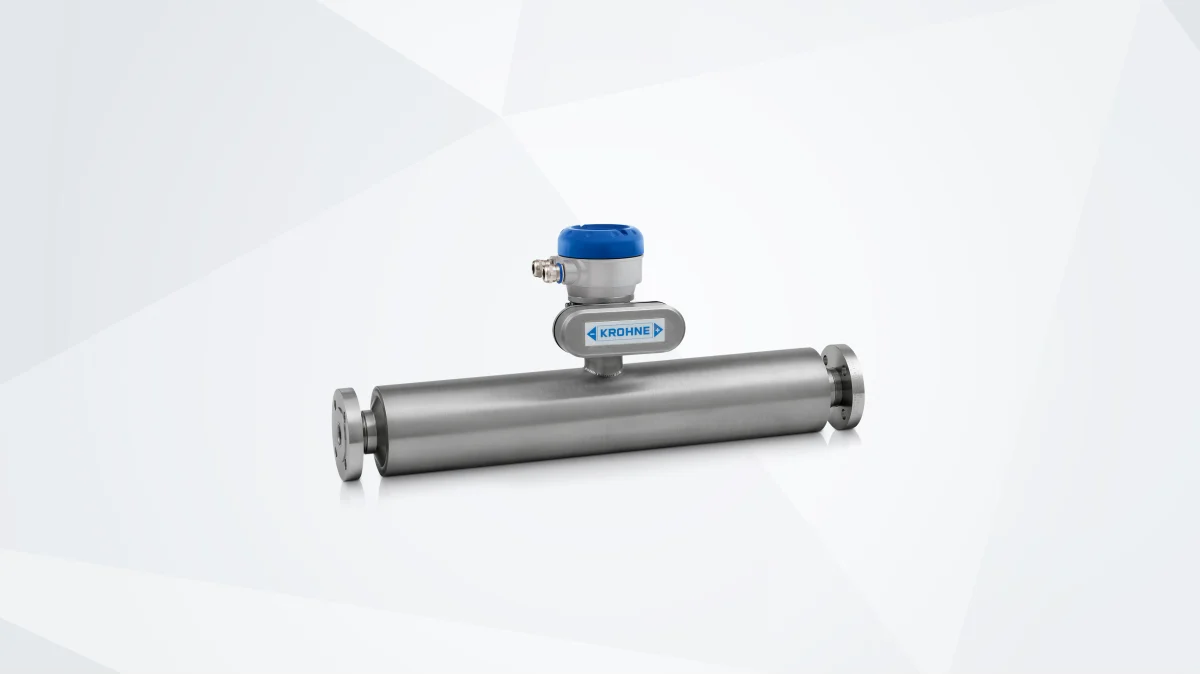

OPTIMASS 7010
Coriolis mass flowmeter for advanced process control with multi-material construction and global certification.
The OPTIMASS 7010 delivers precision mass flow measurement for demanding industrial applications spanning liquids and gases. Operating reliably across -40 to +150°C and up to 100 barg, this Coriolis flowmeter offers exceptional accuracy in challenging environments. Available in premium materials including Alloy 22, Duplex stainless steel, Titanium, and Tantalum—plus flange options to EN, ASME, and JIS standards. Comprehensive global certifications (ATEX, FDA, marine-class approvals) and Modbus RTU integration ensure seamless process automation integration.
Specifications
- Product type
- Flowmeter
- Product family name
- OPTIMASS
- Product positioning
- For advanced applications and process control
- Measurement principle
- Coriolis
- Measured media
- Liquids, Gases
- Process pressure
- max. 100 barg/ 1450 psig
- Process temperature
- -40…+150°C/ -40…+302°F
- Measuring tube
- Austenitic alloy (2.4602/Alloy 22), Duplex stainless steel (1.4462/318), Titanium alloy (3.7195/Ti-Grade 9), Tantalum (UNS RO5255 / RO5200)
- Flange connections
- EN (1092-1): DN10…100 ASME (B 16.5): ½…4" JIS (B 2220): 10…100A
- Certificates/Approvals Ex
- ATEX, IECEx, EAC Ex, INMETRO, FM
- Certificates/Approvals Hygienic
- FDA, 3A, EHEDG, EC 1935/2004
- Certificates/Approvals Marine
- ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS
- Digital outputs
- Modbus RTU
