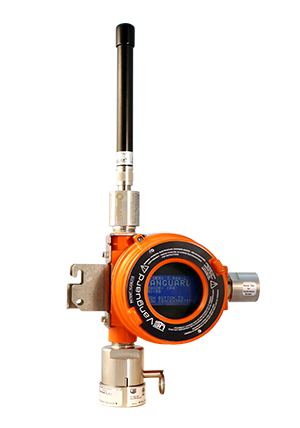

Vanguard WirelessHART® Fixed Point Gas Detector
Wireless fixed-point gas detector for toxic and combustible gas monitoring with hot-swappable sensors and 5-year battery life.
Photo 1 of 2
The Vanguard WirelessHART Fixed Point Gas Detector monitors toxic and combustible gases such as methane, hydrogen sulfide, carbon monoxide, ammonia, and propane, making it ideal for sites with limited power or signal wiring. Built on a true wireless HART platform, it integrates seamlessly with existing WirelessHART networks and predictive asset maintenance systems, cutting installation time and cost. Interchangeable sensors with patented FlexSense technology allow fast hot-swapping and simple bump testing or calibration, while a 5-year battery life minimizes long-term maintenance. Available in TCD50 and TCD60 models with different antenna configurations to suit hazardous area classifications.
Specifications
- Gases Detected
- Methane (CH4), Hydrogen Sulfide (H2S), Carbon Monoxide (CO), Ammonia (NH3), Propane (C3H8)
- Battery Life
- 5 years
- Communication Protocol
- WirelessHART
- Model TCD60 Certification Area
- Groups A, B, C & D / IIC Zones
- Model TCD50 Certification Area
- Groups C & D / IIB Zones
- TCD60 Antenna Options
- 2.0, 4.35, or 6 dBi (field-swappable)
- TCD50 Antenna
- Fixed, non-swappable 2.0 dBi
- Remote Antenna Extension
- 20 ft (TCD60)
- Performance Certification
- IEC/EN 60079-29-1
