Ecom (Pepperl+Fuchs) Phone Device

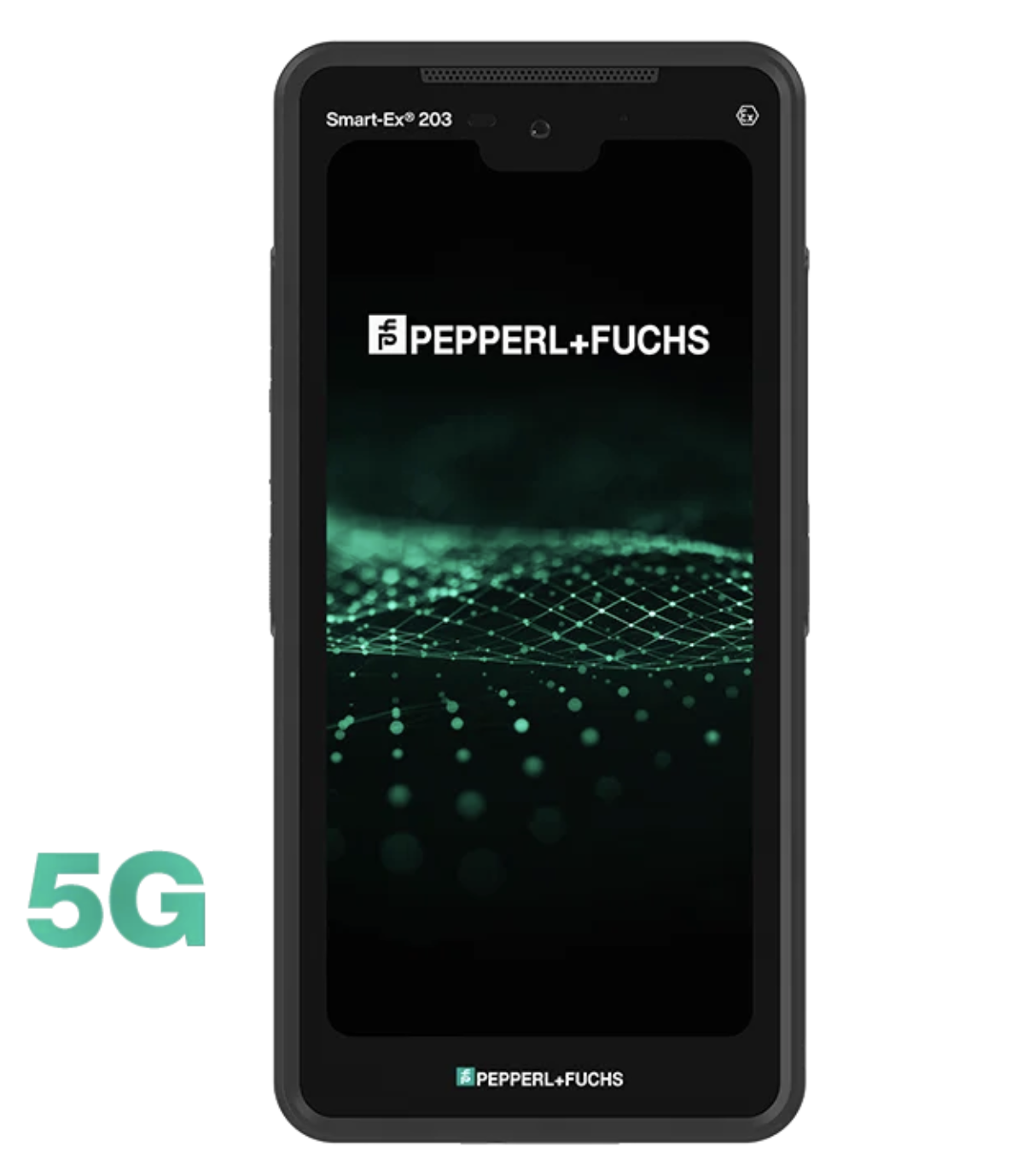

Smart-Ex® 203
Intrinsically safe 5G/Wi‑Fi 6 Android smartphone for Zone 2/22 and Division 2 hazardous areas.
The Smart-Ex® 203 brings 5G and Wi-Fi 6 connectivity, a 6.3-inch display, and a 48 MP camera to industrial mobile teams working in Zone 2/22 and Division 2 environments. Built on Android 14 with Android Enterprise Recommended and ARCore certification, it supports dual SIM (eSIM + nano-SIM), biometric authentication, and an optional snap-on 1D/2D scanning module for extended field functionality. Rugged IP68 and MIL-STD-810H ratings ensure reliable performance in demanding hazardous-area operations.
Specifications
- United States:
- +1 330 425 3555
- Germany / EMEA:
- +49 6294 4224-0
- United Kingdom:
- +44 161 622 6309
- UAE:
- +971 482 184 00
- Processor
- Qualcomm Dragonwing™ QCM4490 3GPP Rel 16 support
- RAM
- 8 GByte
- Camera
- Version without camera available.
- Scanner
- Optional additional 1D/2D-scan module SM-Ex S203 SR (#70192137, Zebra SE4107) available as accessory
- Internal data memory
- 128 GByte
- Optional data memory
- microSD card up to 512 GByte possible
- Sensors
- Biometric, Accelerometer, Gyrometer, Magnetometer, Barometer, Proximity, Ambient light
- Key
- Programmable push-to-talk and multifunction button (can be used as an alarm button) Power button Volume up/down
- Battery type
- Li-ion 4500 mAh
- I/O ports
- USB C Additional interface for peripherals Charging pads for charging in docking station
- WLAN
- IEEE 802.11 2.4 GHz - b/g/n 5 GHz / 6 GHz: - a/ac/ax (Wi-Fi 6e)
- Bluetooth
- 5.2 (BLE supported)
- GPS sensor
- GPS, GLONASS, Galileo, QZSS, BeiDou
- NFC
- yes
- SIM card
- Dual SIM (eSIM + nano-SIM)
- Operating system
- Android™ 14 with GMS (Google Mobile Services) Android™ Enterprise Recommended verified device ARCore certification
Enquire about this product
Pricing, availability, lead times and technical support — direct from our engineers.
