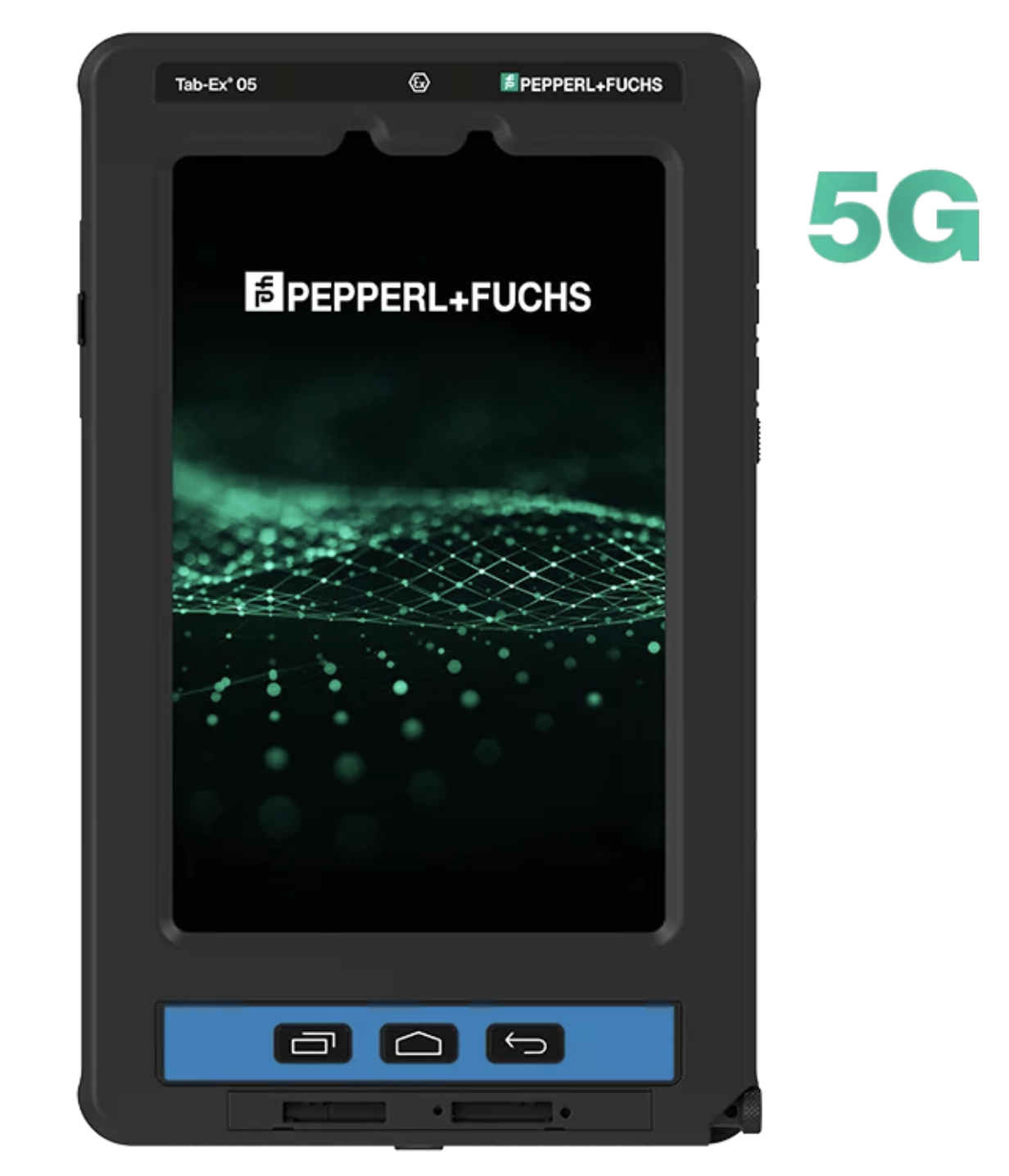

Tab-Ex® 05 DZ1
Rugged 8" 5G Android tablet certified for Zone 1/21 and Division 1 hazardous areas, built on the Samsung Galaxy Tab Active5 platform.
The Tab-Ex® 05 DZ1 brings full intrinsic safety to demanding industrial environments, combining Samsung Galaxy Tab Active5 hardware with certification for Zone 1/21 and Division 1 hazardous locations. Powered by an Exynos 1380 octa-core processor, 6 GB RAM and 128 GB storage, it runs Android 14 with security updates guaranteed through 2032. Fast 5G and Wi-Fi 6 connectivity, wireless Samsung DeX, and Samsung Knox security make it a reliable, future-proof tool for field operations, maintenance, and process automation tasks. Rated IP68 and MIL-STD-810H, it withstands harsh conditions across a -20 to 55 °C operating range.
Specifications
- United States:
- +1 330 425 3555
- Germany / EMEA:
- +49 6294 4224-0
- United Kingdom:
- +44 161 622 6309
- UAE:
- +971 482 184 00
- Processor
- Exynos 1380 (S5E8835) Octa-Core 4 x 2.4 GHz + 4 x 2.0 GHz 64 Bit, 5 nm
- RAM
- 6 GB LPDDR4X
- Camera
- Version without camera available.
- Internal data memory
- 128 GB UFS
- Optional data memory
- microSD (up to 1 TB)
- Sensors
- Accelerometer, Gyro Sensor, Geomagnetic Sensor, Hall Sensor, RGB Light Sensor
- Key
- Function button, Active button
- Battery type
- Li-ion 3.8 V 5050 mAh 18.87 Wh (typically)
- Operating duration
- up to 14 h
- I/O ports
- USB 2.0 (Type-C)
- Mobile standard
- Also available in a Wi-Fi only version.
- WLAN
- WLAN 802.11 a/b/g (2.4 GHz), WiFi 4, 5, 6 (2.4 GHz + 5 GHz ), HE80, MIMO, 1024 QAM, WiFi Direct, Mobile Hotspot, Hotspot 2.0, Auto Hotspot
- Bluetooth
- Bluetooth® 5.3
- GPS sensor
- GPS, Glonass, Beidou, Galileo
- NFC
- yes
- Connections
- Wireless DeX
