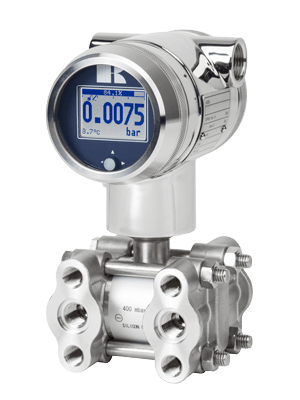

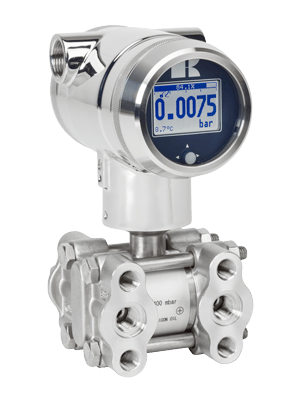

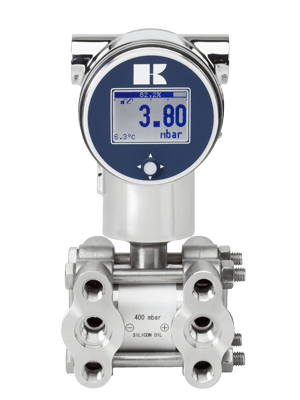

DP-4000

The DP-4000 differential pressure transmitter delivers exceptional measurement accuracy of 0.075% across a 10 mbar to 20 bar range, with optional 0.065% performance for critical applications. Featuring dual communication protocols—4-20 mA HART (versions 5.0 and 7.0) and Profibus PA—it integrates seamlessly into modern process control systems. Its rugged AISI 316L stainless steel construction, combined with 100:1 turndown capability and IP66/67 protection, ensures reliable operation in harsh environments from -20°C to +80°C. Available with ATEX Ex-ia certification and multiple diaphragm material options including Hastelloy C and Tantalum, the DP-4000 adapts to corrosive and high-temperature processes.

Specifications

Measuring range min. max.

10 mbar…20 bar

Static pressure

Max. 160 bar option 250 bar

Process temperature

-20 °C…+80°C (option 100 °C)

Accuracy

0,075 %, option 0,065 %

Process connections

1/4 -18 NPT female, option ½” NPT

Turn down

Max. 100:1

Output

4-20 mA 2-wire + HART protocol (version 5.0 and 7.0), Profibus PA

Adjustment

With programming button and display, without test pressure or with HART

Display

Multilingual, with bargraph, backlight and process temperature reading

Power supply

12 - 36 Vdc ( Ex: 12 - 30 Vdc)

Protection

IP66/67 (option IP68)

Ambient temperature

-20 °C...+70 °C

Diaphragm material

AISI 316L, option Hastelloy C, Tantalum or Gold plated

Wetted parts

AISI 316L, option Hastelloy C

Material sensor gasket

Viton/FKM (standard), PTFE or NBR

Electronics housing

AISI 304, option AISI 316

Certificates/approvals

Explosion safety: ATEX Ex-ia and IECEx Ex-ia (Optional T5 and T6)
