Krohne

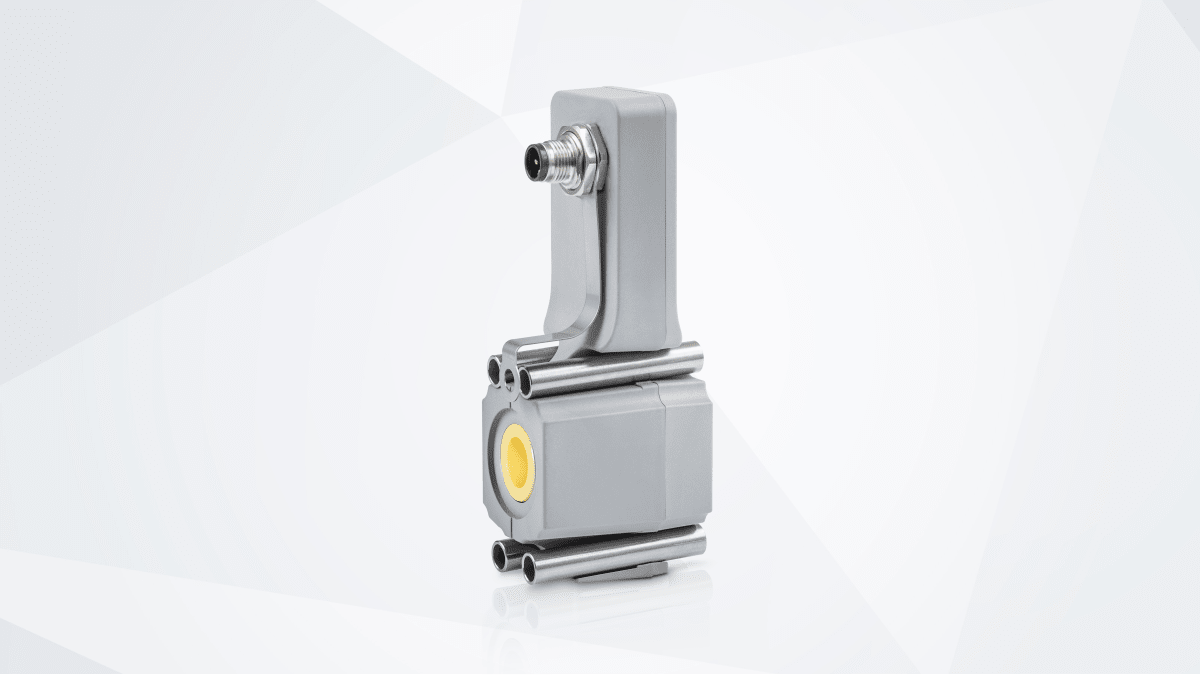

BATCHFLUX 3100
Electromagnetic flowmeter for precise volumetric filling with FDA-approved hygienic design.
The BATCHFLUX 3100 delivers accurate volumetric filling control for standard container applications. Its electromagnetic measurement principle and ceramic measuring tube ensure reliable performance across diverse liquid media, while operating safely within 8 bar pressure and -20 to +60°C temperature ranges. Featuring IP67/IP69/IP66 protection and full FDA/EC hygiene compliance, the unit provides pulse and frequency outputs for seamless integration into batch-filling systems.
Specifications
- Product type
- Flowmeter
- Product family name
- BATCHFLUX
- Product positioning
- For the volumetric filling of common container sizes
- Measurement principle
- Electromagnetic
- Measured media
- Liquids
- Process pressure
- max. 8 bar/ 116 psi
- Process temperature
- -20…+60°C/ -4…+140°F
- Measuring tube
- Ceramic (ZrO2)
- Ingress protection
- IP67, IP69, IP66
- Certificates/Approvals Hygienic
- FDA, EC 1935/2004, EC2023/2006, GB 4806
- Discrete outputs
- Pulse, Frequency
- Revision
- EN
