Krohne

OPTIFLUX 4100

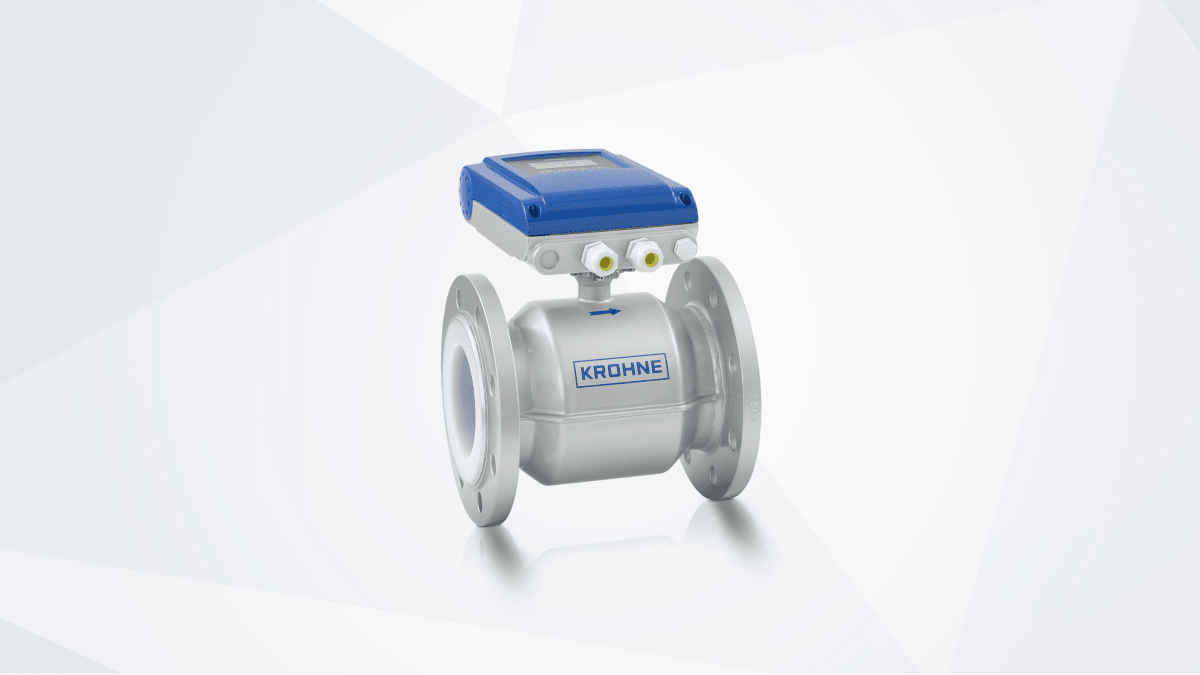

KROHNE OPTIFLUX 4100: Robust electromagnetic flowmeter engineered for abrasive and corrosive liquid applications.

The OPTIFLUX 4100 delivers precise electromagnetic flow measurement across demanding industrial environments where abrasive slurries and chemically aggressive media are present. With selectable liner materials including PFA, PTFE, polyurethane, hard rubber, ETFE, and soft rubber, the meter adapts to your process chemistry while maintaining measurement accuracy. Operating reliably from -40°C to +180°C at pressures up to 40 bar, it supports multiple output options—4-20 mA, pulse, frequency, status signals, and HART® digital communication—enabling seamless integration into control systems. Certified across ATEX, IECEx, FM, CSA, FDA, and leading marine classification societies, the OPTIFLUX 4100 meets international standards for process automation, hygienic applications, and offshore operations.

Specifications

Product type: Flowmeter
Product family name: OPTIFLUX
Product positioning: For standard applications with abrasive and aggressive liquids
Measurement principle: Electromagnetic
Measured media: Liquids
Process pressure: max. 40 barg/ 580 psig
Process temperature: -40…+180°C/ -40…+356°F
Liner: Perfluoroalkoxy alkane (PFA), Polytetrafluoroethylene (PTFE), Polyuretane (PUR), Hard rubber, Ethylene tetrafluoroethylene (ETFE), Soft rubber
Flange connections: EN (1092-1): DN2.5…1200 ASME (B 16.5): ⅒…48" JIS (B 2220): 2.5…1000A
Certificates/Approvals Ex: ATEX, IECEx, NEPSI, FM, CSA
Certificates/Approvals Hygienic: FDA
Certificates/Approvals Marine: ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS
Analogue outputs: 4…20 mA
Discrete outputs: Pulse, Frequency, Status
Digital outputs: HART ®
