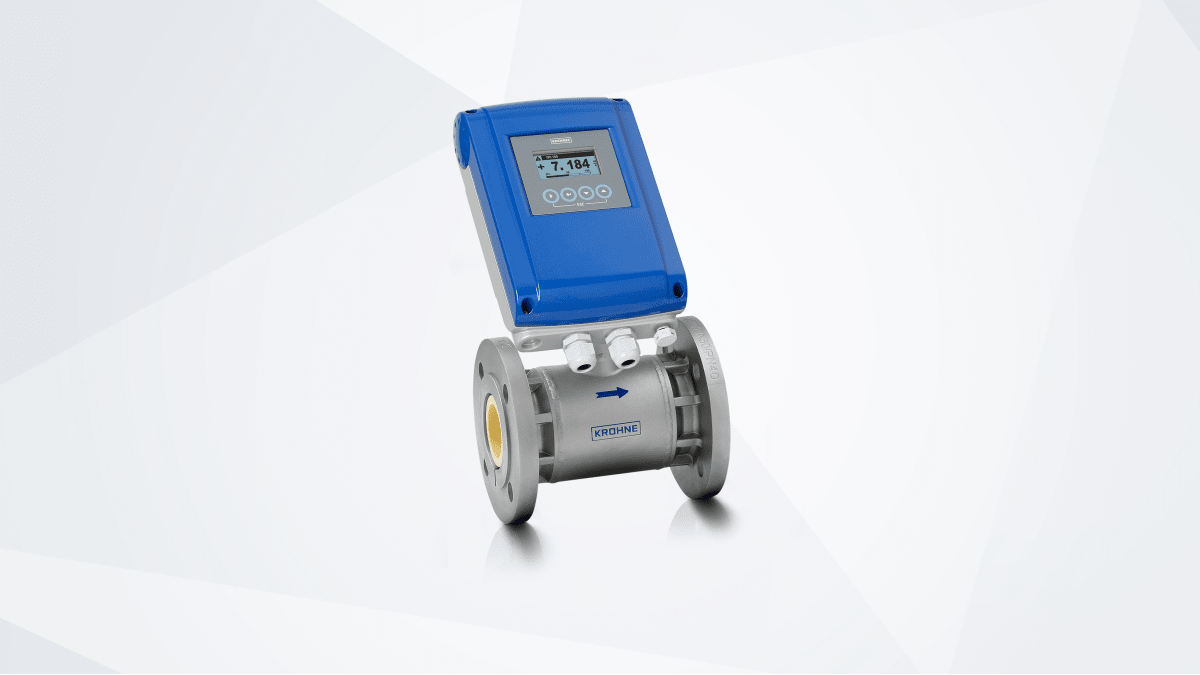

OPTIFLUX 5100
Ceramic-lined electromagnetic flowmeter engineered for aggressive and abrasive liquid applications up to 40 barg and 180°C.
The OPTIFLUX 5100 delivers reliable flow measurement in the harshest industrial conditions. Its ceramic measuring tube (ZrO2 or Al2O3) resists erosion and corrosion from aggressive liquids, ensuring long service life and minimal maintenance. With flexible connection options (EN flanges, ASME flanges, and sandwich configurations from DN2.5 to DN300), integrated HART® digital communication, and multiple output formats (4–20 mA, pulse, frequency, status), this electromagnetic flowmeter integrates seamlessly into modern automation systems. Marine-grade certifications (ABS, DNV, BV, others) and hygienic approvals (FDA, EC regulations) make it suitable for demanding process industries worldwide.
Specifications
- Product type
- Flowmeter
- Product family name
- OPTIFLUX
- Product positioning
- For demanding applications with aggressive and abrasive fluids
- Measurement principle
- Electromagnetic
- Measured media
- Liquids
- Process pressure
- max. 40 barg/580 psig
- Process temperature
- -40…+180°C/-40…+356°F
- Measuring tube
- Ceramic (ZrO2 or Al2O3)
- Flange connections
- EN (1092-1): DN15…300 ASME (B 16.5): ½...12"
- Other connections
- Sandwich (wafer) connection: DN2.5...100 ⅒...4"
- Certificates/Approvals Hygienic
- FDA, EC 1935/2004, EC2023/2006
- Certificates/Approvals Marine
- ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS
- Analogue outputs
- 4…20 mA
- Discrete outputs
- Pulse, Frequency, Status
- Digital outputs
- HART®
