Klay Instruments

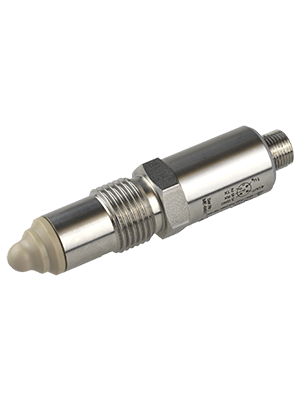

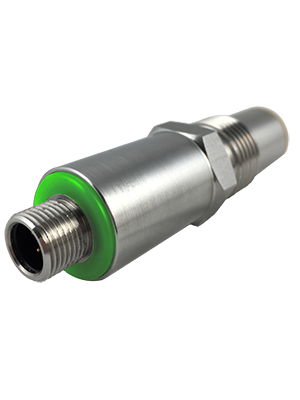

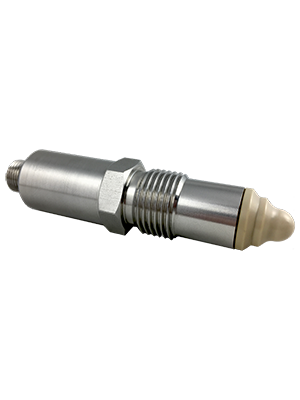

KMW-LC

Compact hygienic level switch with programmable sensitivity, IP68 protection, and switchable output logic for sanitary applications.

The KMW-LC from Klay Instruments delivers reliable level detection in demanding sanitary environments. Featuring a 14 mm insertion design, this sensor operates seamlessly across 0–100 °C with surge capability to 130 °C, accommodating pressures up to 10 bar. Its hygienic ½" BSP socket and sanitary connections eliminate process contamination while maintaining IP68-rated sealing. Choose between PNP, NPN, or Push Pull output logic to match your control architecture, with sensitivity fully adjustable via PC software and external LED status indication.

Specifications

Insertion length: 14 mm
Process temperature: 0…+100 °C, 130 °C/1 hr
Pressure: Max. 10 bar
Process connections: ½“ BSP with hygienic socket and sanitary connections
Output: PNP, NPN or Push Pull switchable
Output indication: External LED
Sensivity: Programmable with PC, interface and software
Power supply: 18 - 32 Vdc
Protection: IP68
Material sensor: PEEK
Material housing: AISI 316L
Ambient temperature: -10 °C…+70 °C
