8000-VALVE
Integrated pressure transmitter in valve body; live-removable design with 0.1–10 bar range and 0.2% accuracy.

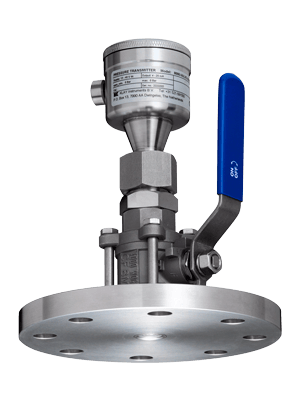

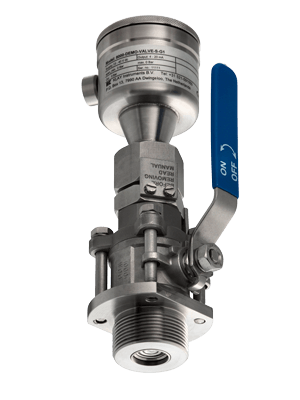

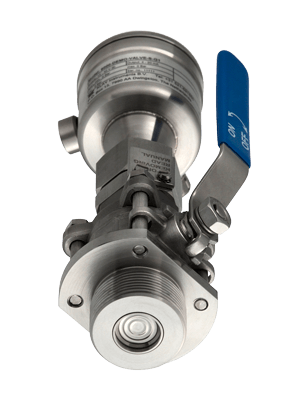

Photo 1 of 3
The Klay Instruments 8000-VALVE combines pressure measurement and isolation in a single compact unit. The transmitter can be safely removed from the process without interrupting operation, enabling maintenance and calibration without downtime. Constructed entirely from stainless steel (AISI 316L standard, with Hastelloy C, Tantalum or gold-plated options), it delivers 0.2% accuracy across the 0.1–10 bar range and operates reliably from –20 °C to +85 °C. The 4–20 mA 2-wire output integrates seamlessly into automation systems, with adjustable zero and span settings and redundant protection (IP66 standard, IP68 optional) ensuring long-term performance in demanding environments.
Specifications
- Measuring ranges min. max.
- 0,1…10 bar
- Process temperature
- -20 °C…+85 °C
- Accuracy
- 0,2 % of adjusted span
- Process connections
- Threaded connections, flanges and welding flange
- Turn down
- 4:1
- Output
- 4-20 mA 2-wire
- Adjustment
- Zero and span adjustable
- Power supply
- 12 - 36 Vdc
- Protection
- IP66 (option IP68)
- Ambient temperature
- -30 °C...+70 °C
- Diaphragm material
- AISI 316L, option Hastelloy C, Tantalum or Gold plated
- Wetted parts
- AISI 316L
- Electronics housing
- AISI 304, option AISI 316
