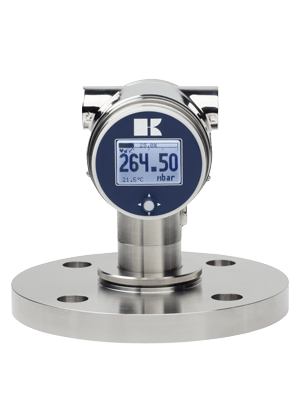

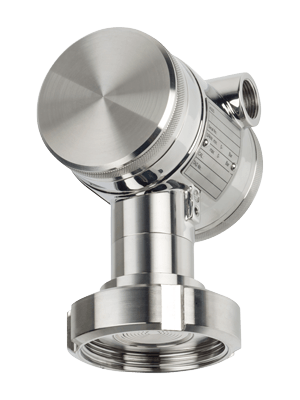

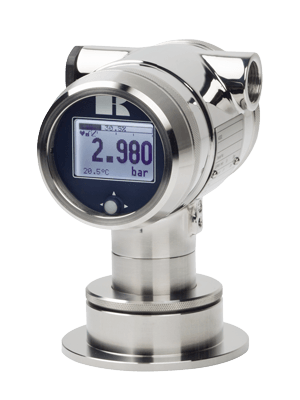

4000-SAN

The Klay Instruments 4000-SAN delivers precise pressure measurement in hygienic processing environments with a versatile 0.03–100 bar range and industry-leading 0.075% accuracy. Its flush diaphragm design and EHEDG/3-A compliant construction eliminate product pockets while supporting stainless steel (AISI 316L) or specialized materials including Hastelloy, Tantalum, and gold-plated options. Microprocessor-based configuration via integrated button and display enables field programming without test equipment, with simultaneous process temperature readout and multilingual interface. ATEX Ex-ia and IECEx certification (optional T5/T6) ensures safe operation in explosive atmospheres, while robust 4–20 mA output with optional HART and Profibus PA connectivity integrates seamlessly into distributed control systems.

Specifications

Measuring range min. max.

0,03…100 bar

Process temperature

-20 °C…+100 °C (145 °C /45 min), option HT max. 280 °C

Accuracy

0,075 % of adjusted span

Process connections

Hygienic connections, flanges and threaded connections, all with flush diaphragm

Turn down

20:1

Output

4-20 mA 2-wire with option HART protocol, Profibus PA

Adjustment

With programming button and display, without test pressure or with HART

Display

Multilingual, with bargraph, backlight and process temperature reading

Power supply

12 - 36 Vdc ( Ex: 12 - 30 Vdc)

Protection

IP66 (option IP68)

Ambient temperature

-20 °C...+70 °C

Diaphragm material

AISI 316L, option Hastelloy C, Tantalum or Gold plated

Wetted parts

AISI 316L

Electronics housing

AISI 304, option AISI 316

Certificates/approvals

Explosion safety: ATEX Ex-ia and IECEx Ex-ia (Optional T5 and T6) Sanitary standard: EHEDG, 3-A
