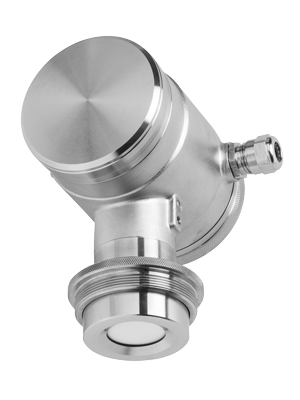

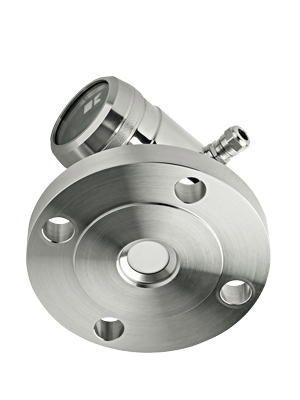

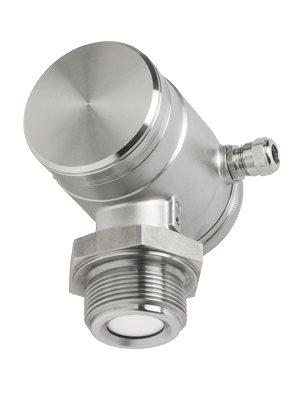

3000-SAN
Intelligent ceramic pressure transmitter for hygienic applications with 0.1-50 bar range and HART capability.
Photo 1 of 3
The Klay Instruments 3000-SAN is a precision pressure transmitter engineered for sanitary and industrial processes requiring robust performance across demanding temperature ranges (-20°C to +100°C). Featuring a high-purity ceramic sensing element (Al₂O₃ 99.9%), it delivers 0.2% accuracy (with 0.1% option) across 0.1–50 bar measurement spans, supported by versatile hygienic, flange, and threaded connection options. The intelligent 4-20 mA output with optional HART protocol integration enables advanced diagnostics and asset management, while IP66/IP68 enclosure protection and corrosion-resistant 316L/Hastelloy construction ensure long-term reliability in hygienic and corrosive environments.
Specifications
- Measuring range min. max.
- 0.1…50 bar
- Process temperature
- -20 °C… +100 °C (140 °C /30 min.)
- Accuracy
- 0.2 % of adjusted span, option 0.1 %
- Process connections
- Hygienic connections, flanges and threaded connections
- Turn down
- 10:1
- Output
- 4-20 mA 2-wire, option HART protocol
- Adjustment
- With 3 push buttons and display, without test pressure or with HART
- Power supply
- 12 - 36 Vdc
- Protection
- IP66 (option IP68)
- Ambient temperature
- -20 °C...+70 °C
- Sensor material
- Ceramic (Al 2 O 3 ) 99,9%
- Other wetted parts
- AISI 316L, option Hastelloy C
- Electronics housing
- AISI 304, option AISI 316
