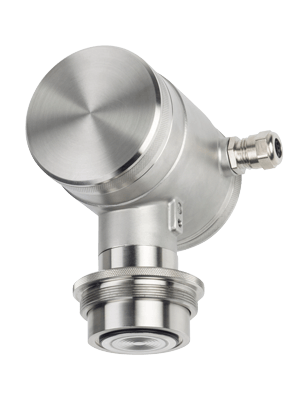

2000-SAN

The 2000-SAN delivers 0.1% accuracy across a 0–100 bar range with exceptional flexibility for diverse industrial applications. Featuring hygienic, flange, and threaded connection options with flush diaphragms, it handles temperatures from –20°C to +100°C (expandable to 280°C), making it ideal for food processing, pharmaceuticals, and corrosive environments. Four-way diaphragm material selection—including AISI 316L, Hastelloy C, Tantalum, and gold-plated options—ensures compatibility with aggressive media. Simple three-button adjustment and optional HART protocol support streamline commissioning and integration.

Specifications

Measuring range min. max.

0,04…100 bar

Process temperature

-20 °C…+100 °C (145 °C /45 min), option HT max. 280 °C

Accuracy

0,1 % of adjusted span

Process connections

Hygienic connections, flanges and threaded connections, all with flush diaphragm

Turn down

10:1

Output

4-20 mA 2-wire, option HART protocol

Adjustment

With 3 push buttons and display, without test pressure or with HART

Power supply

12 - 36 Vdc ( Ex: 12 - 26,5 Vdc)

Protection

IP66 (option IP68)

Ambient temperature

-20 °C...+70 °C

Diaphragm material

AISI 316L, option Hastelloy C, Tantalum or Gold plated

Wetted parts

AISI 316L

Electronics housing

AISI 304, option AISI 316
