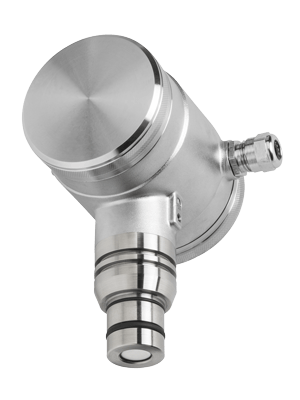

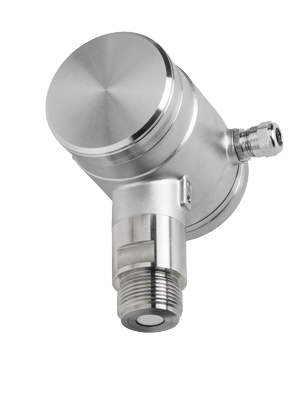

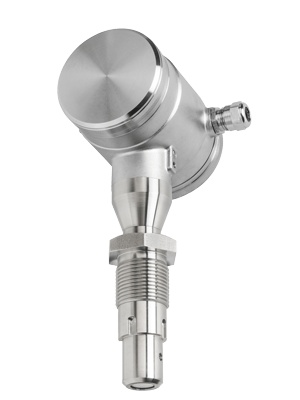

3000

The Klay Instruments Model 3000 delivers precise pressure measurement across 0.1–50 bar with ceramic sensor technology, achieving 0.2% accuracy (0.1% option available). Field-configurable via three push buttons and integral display, it supports 4-20 mA output with optional HART digital communication for real-time diagnostics and remote calibration. Constructed from AISI 316L wetted parts and rated IP66/IP68, this transmitter operates reliably from -20°C to +80°C process temperature while accepting 12–36 Vdc power, making it ideal for pulp, paper, and general industrial process control.

Specifications

Measuring range min. max.

0,1…50 bar

Process temperature

-20 °C…+80 °C

Accuracy

0,2 % of adjusted span, option 0,1 %

Process connections

1” BSP / NPT and pulp- and paper connections

Turn down

10:1

Output

4-20 mA 2-wire, option HART protocol

Adjustment

With 3 push buttons and display, without test pressure or with HART

Power supply

12 - 36 Vdc

Protection

IP66 (option IP68)

Ambient temperature

-20 °C… +70 °C

Sensor material

Ceramic (AI 2 0 3 ) 99,9 %

Other wetted parts

AISI 316L, option Hastelloy C

Electronics housing

AISI 304, option AISI 316
