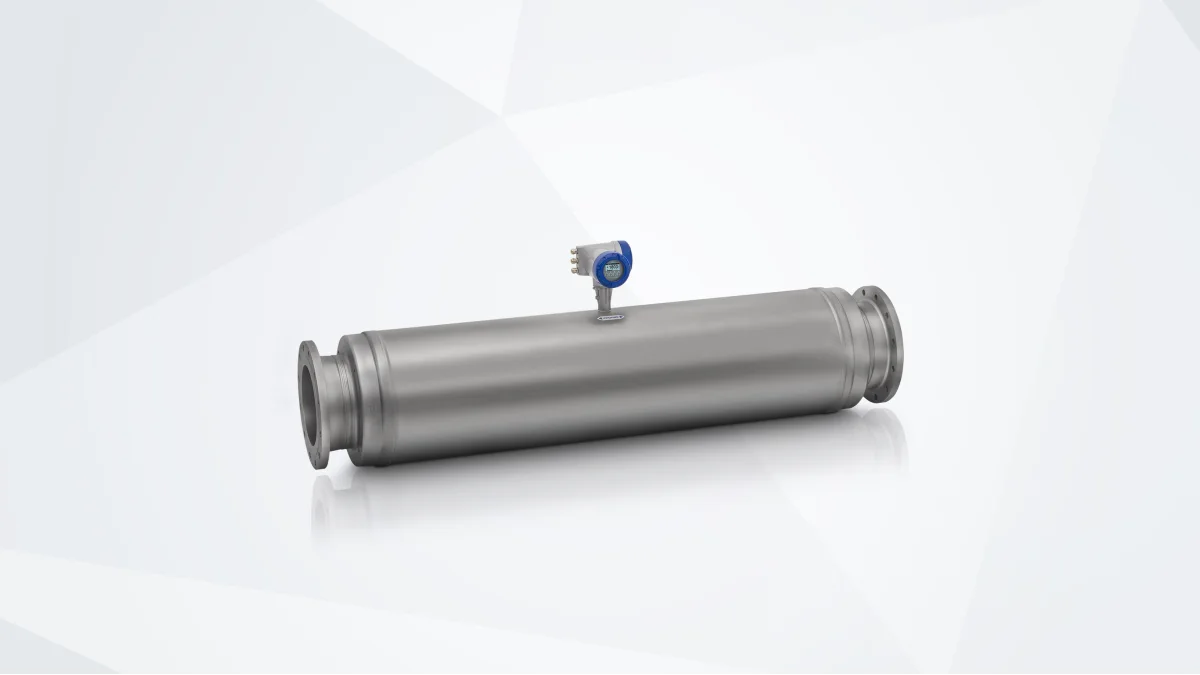

OPTIMASS 2400

The OPTIMASS 2400 delivers precise mass flow measurement for demanding bulk transfer and custody transfer applications across gas and liquid media. Built with premium Super Duplex or Duplex stainless steel measuring tubes, it operates reliably from -45°C to +130°C and withstands pressures up to 180 bar. Multi-protocol digital connectivity—including FOUNDATION Fieldbus, HART, Profibus, EtherNet/IP, and PROFINET—integrates seamlessly into modern automation environments. Certified for hazardous areas (ATEX, IECEx), marine service, hygienic applications, and NACE corrosion standards, it's engineered for critical measurement where accuracy and durability matter.

Specifications

Product type

Flowmeter

Product family name

OPTIMASS

Product positioning

For bulk and custody transfer (CT) measurement of gases and liquids

Measurement principle

Coriolis

Measured media

Liquids, Gases

Process pressure

max. 180 barg/ 2600 psig

Process temperature

-45…+130°C/ -49…+266°F

Measuring tube

Super Duplex stainless steel (1.4501/Alloy100), Duplex stainless steel (1.4462/318)

Flange connections

EN (1092-1): DN100…400 ASME (B 16.5): 4…16" JIS (B 2220): 100A

Certificates/Approvals Ex

ATEX, IECEx, NEPSI, FM, CSA, UKEX

Certificates/Approvals Hygienic

FDA, EC 1935/2004

Certificates/Approvals Marine

ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS

Certificates/Approvals Others

NACE

Analogue outputs

4…20 mA

Discrete outputs

Limit switches, Pulse, Frequency, Status

Digital outputs

FOUNDATION™ Fieldbus, HART ® , Profibus-PA, Profibus-DP, EtherNet/IP™, PROFINET, Bluetooth ® , PROFINET (Ethernet-APL)
