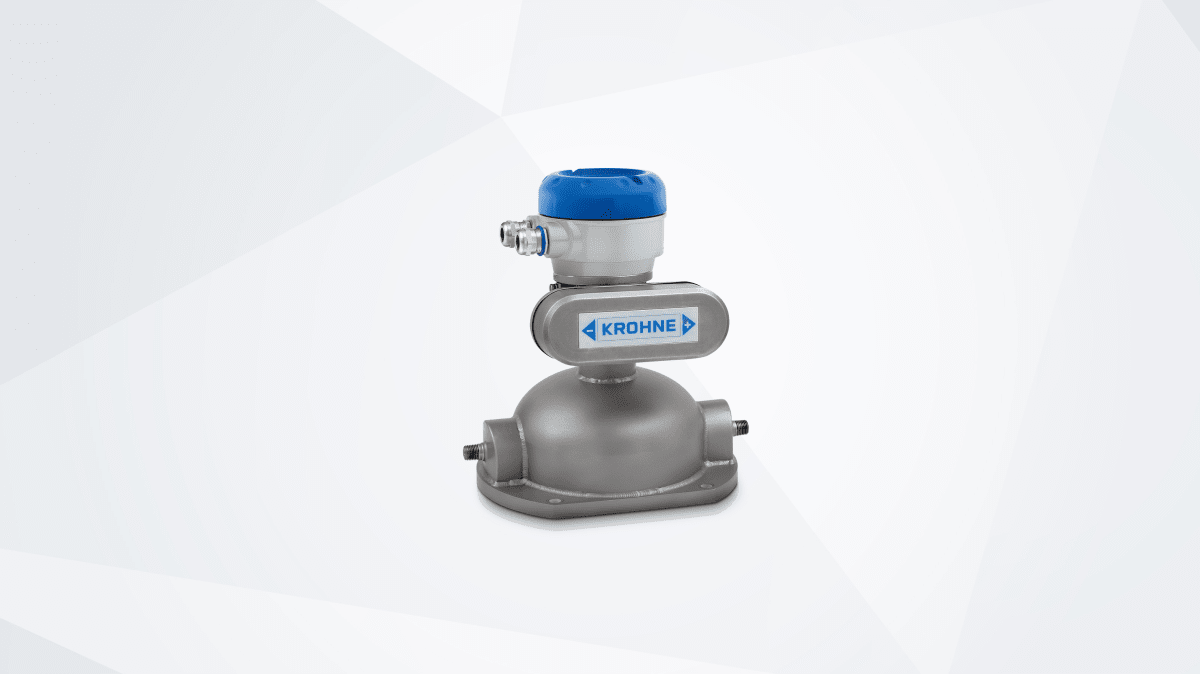

OPTIMASS 3010
Precision Coriolis flowmeter for low-flow dosing and measurement of liquids and gases up to 300 bar.
The OPTIMASS 3010 delivers direct mass flow measurement across demanding process conditions, engineered specifically for low-flow and metered-dose applications. Compact design with robust stainless steel (316L) or Alloy 22 measuring tubes handles pressures to 300 bar and temperatures from -40°C to +150°C. Equipped with Modbus RTU digital output and multiple connection standards (EN, ASME, JIS flanges plus NPT threads and hygienic clamp options), it integrates seamlessly into food, chemical, and pharmaceutical processes. Certified for hazardous areas under ATEX, IECEx, and other major standards.
Specifications
- Product type
- Flowmeter
- Product family name
- OPTIMASS
- Product positioning
- For low flow and dosing applications
- Measurement principle
- Coriolis
- Measured media
- Liquids, Gases
- Process pressure
- max. 300 barg/ 4351 psig
- Process temperature
- -40…+150°C/ -40…+302°F
- Measuring tube
- Austenitic stainless steel (1.4404/316L), Austenitic alloy (2.4602/Alloy 22)
- Flange connections
- EN (1092-1): DN15 ASME (B 16.5): ½" JIS (B 2220): 15A
- Thread connections
- Female: ¼ NPT
- Hygienic connections
- Clamp (DIN 32676): DN10 Tri-Clamp: ½
- Certificates/Approvals Ex
- ATEX, IECEx, EAC Ex, INMETRO, FM
- Digital outputs
- Modbus RTU
- Revision
- EN
