Krohne

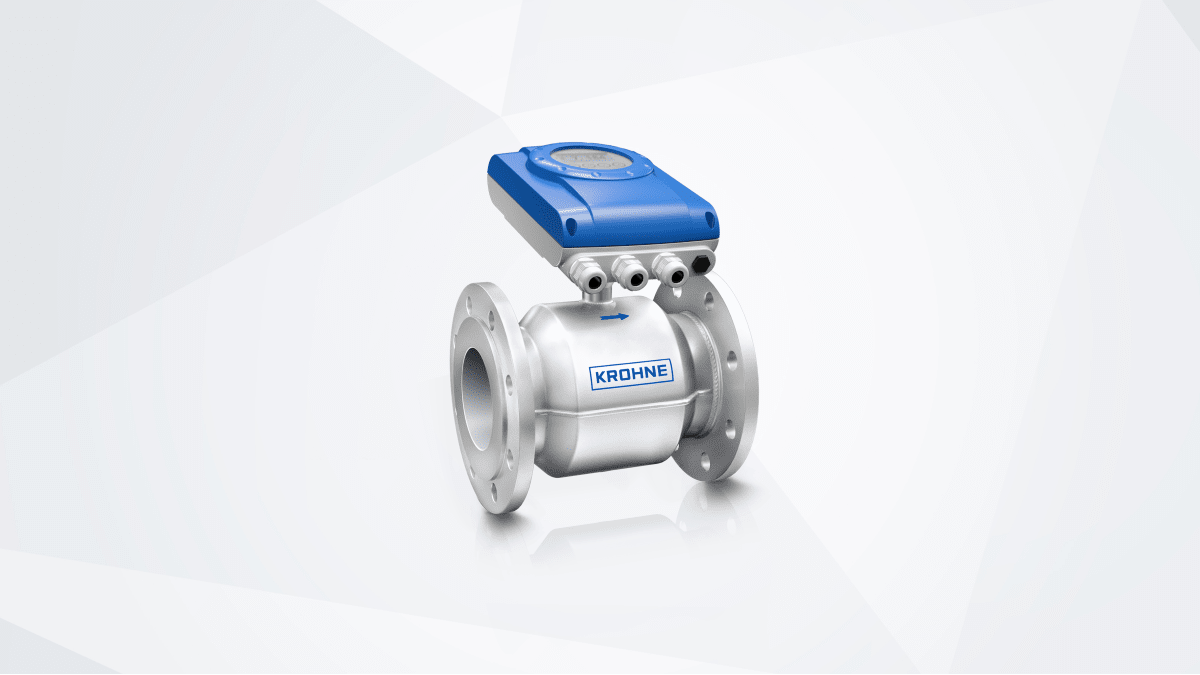

WATERFLUX 3050

WATERFLUX 3050: reliable electromagnetic flowmeter for municipal and industrial water measurement up to 16 bar.

The WATERFLUX 3050 delivers accurate flow measurement for potable water and general liquid applications across municipal and industrial systems. This proven electromagnetic flowmeter operates reliably from -5°C to +70°C with a polyamide liner and accommodates pressure ratings to 16 bar. Comprehensive connectivity options include 4–20 mA analogue output, pulse/frequency outputs, and digital protocols (HART, Modbus RTU) for seamless integration. Multiple international certifications—DVGW, NSF, WRAS, and major marine approvals—ensure compliance with potable water standards and offshore requirements across the Middle East and Mediterranean regions.

Specifications

Product type: Flowmeter
Product family name: WATERFLUX
Product positioning: For basic water applications
Measurement principle: Electromagnetic
Measured media: Liquids
Process pressure: max. 16 barg/ 230 psig
Process temperature: -5…+70°C/ +23…+158°F
Liner: Polyamide polymer 11 (Rilsan ® )
Flange connections: EN (1092-1): DN25…600 ASME (B 16.5): 1…24" JIS (B 2220): 25…600A
Thread connections: Male: G1, G1½, G2
Certificates/Approvals Marine: ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS
Certificates/Approvals Potable Water: DVGW, NSF, TZW, KTW, WRAS, KIWA, ACS
Analogue outputs: 4…20 mA
Discrete outputs: Pulse, Frequency, Status
Digital outputs: HART ® , Modbus RTU
