Krohne

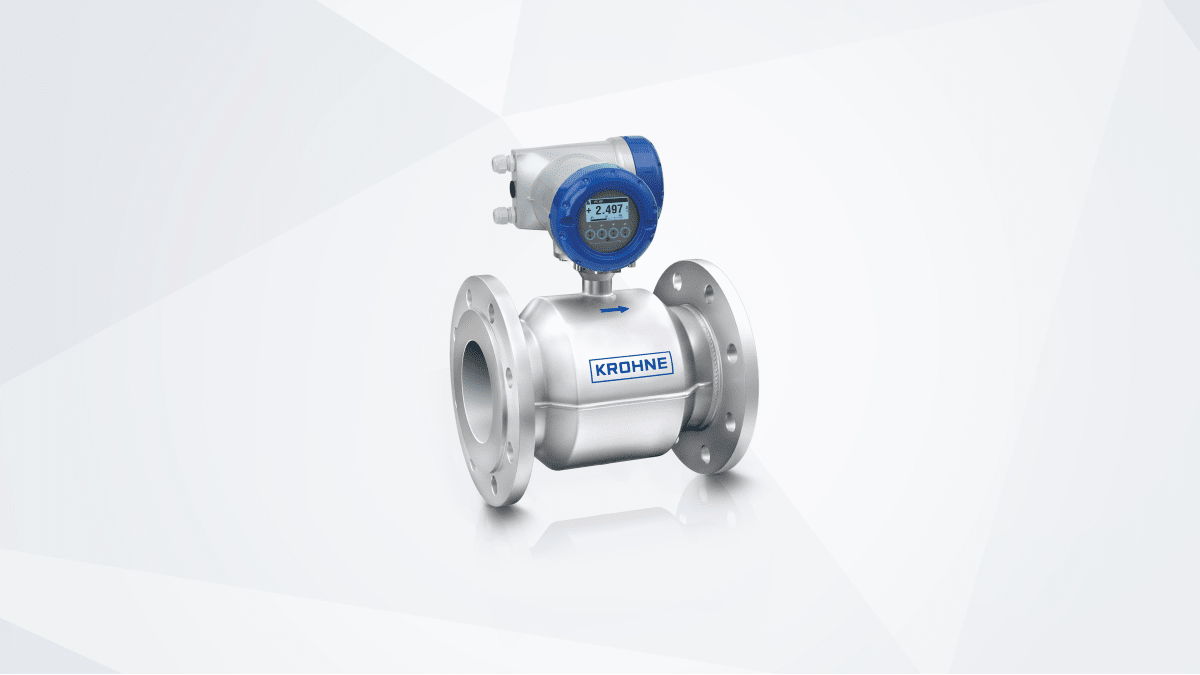

WATERFLUX 3300

KROHNE WATERFLUX 3300: Certified electromagnetic flowmeter for precise water and custody transfer measurement.

The WATERFLUX 3300 delivers accurate flow measurement across demanding water and custody transfer operations, with electromagnetic sensing technology that requires no moving parts. Engineered for reliability in potable water systems and marine applications, it combines international certifications (MI-001, MI-004, OIML R49, DVGW, NSF, WRAS) with robust polyamide liner construction rated to 16 bar. Flexible connectivity via 4–20 mA, HART, PROFINET, Modbus RTU, and Fieldbus integration ensures seamless system deployment across DN25–600 installations.

Specifications

Product type: Flowmeter
Product family name: WATERFLUX
Product positioning: For advanced water and custody transfer (CT) applications
Measurement principle: Electromagnetic
Measured media: Liquids
Process pressure: max. 16 barg/230 psig
Process temperature: -5…+70°C/+23…+158°F
Liner: Polyamide polymer 11 (Rilsan®)
Flange connections: EN (1092-1): DN25…600 ASME (B 16.5): 1…24" JIS (B 2220): 25…600A
Thread connections: Male: G1, G1½, G2
Certificates/Approvals Custody transfer (CT): MI-001, MI-004, OIML R49, Cooling
Certificates/Approvals Marine: ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS
Certificates/Approvals Potable Water: DVGW, NSF, TZW, KTW, WRAS, KIWA, ACS
Analogue outputs: 4…20 mA
Discrete outputs: Limit switches, Pulse, Frequency, Status
Digital outputs: FOUNDATION™ Fieldbus, HART®, Profibus-PA, Profibus-DP, Modbus RTU, PROFINET
