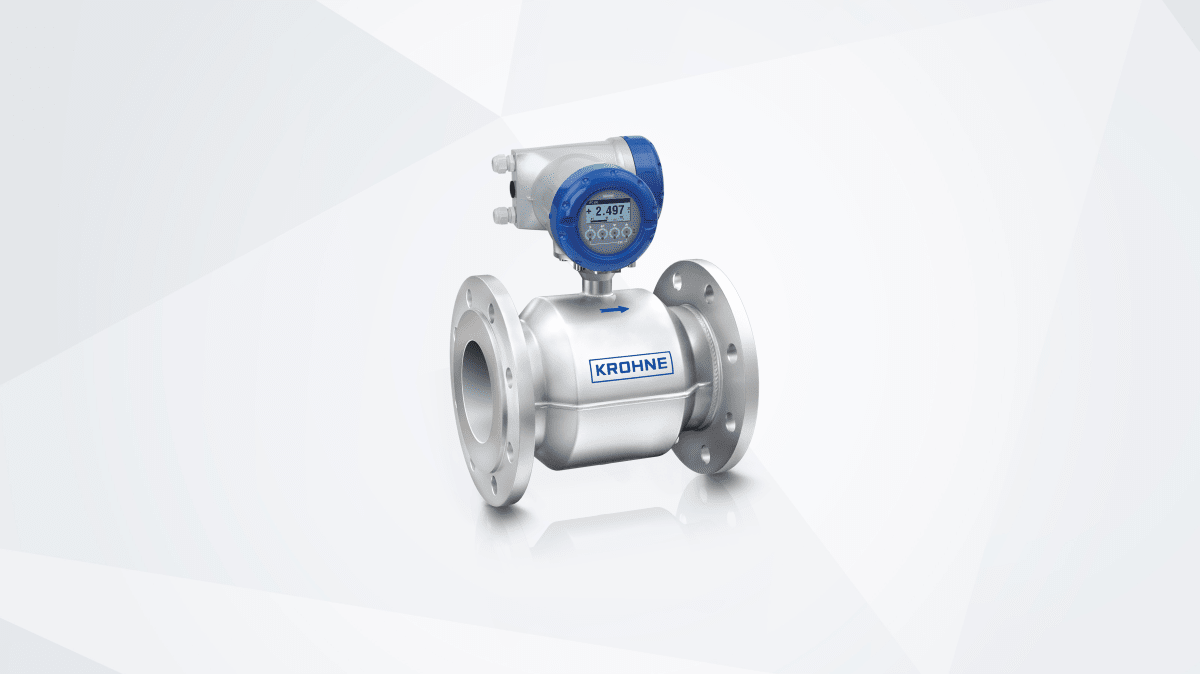

WATERFLUX 3400

The WATERFLUX 3400 is an electromagnetic flowmeter specifically designed for demanding water measurement tasks where installation space is constrained. Its 0D inlet/outlet design eliminates the need for extended straight-pipe runs, reducing installation complexity and footprint while maintaining measurement accuracy. Available in compact (C) and field-mounted (F) configurations with multiple connection standards (EN, ASME, JIS), the meter supports up to 3 analogue outputs plus discrete and digital outputs including HART® and Bluetooth® for flexible integration and remote monitoring. Fully certified for potable water applications (DVGW, NSF, WRAS, KIWA) and hazardous areas (ATEX, IECEx), it delivers reliable performance across -5…+70°C and pressures to 16 barg.

Specifications

Product type

Flowmeter

Product family name

OPTIFLUX

Product positioning

For advanced water applications and wireless on-site verification

Product variants

WATEFRLUX 3400 C - Compact version WATERFLUX 3400 F - Field-mounted version

Measurement principle

Electromagnetic

Measured media

Liquids

Process pressure

max. 16 barg/230 psig

Process temperature

-5…+70°C/+23…+158°F

Liner

Polyamide polymer 11 (Rilsan®)

Flange connections

EN (1092-1): DN25…600 ASME (B 16.5): 1…24" JIS (B 2220): 25…600A

Thread connections

Male: G1, G1½, G2

Inlet run

0D

Outlet run

0D

Certificates/Approvals Ex

ATEX, IECEx, NEPSI

Certificates/Approvals Potable Water

DVGW, NSF, TZW, KTW, WRAS, KIWA, ACS

NAMUR compliance

NE 107, NE 21, NE 43, NE 53, NE 131

Analogue outputs

up to 3 x 4…20 mA

Discrete outputs

Limit switches, Pulse, Frequency, Status

Digital outputs

HART®, Bluetooth®
