Krohne

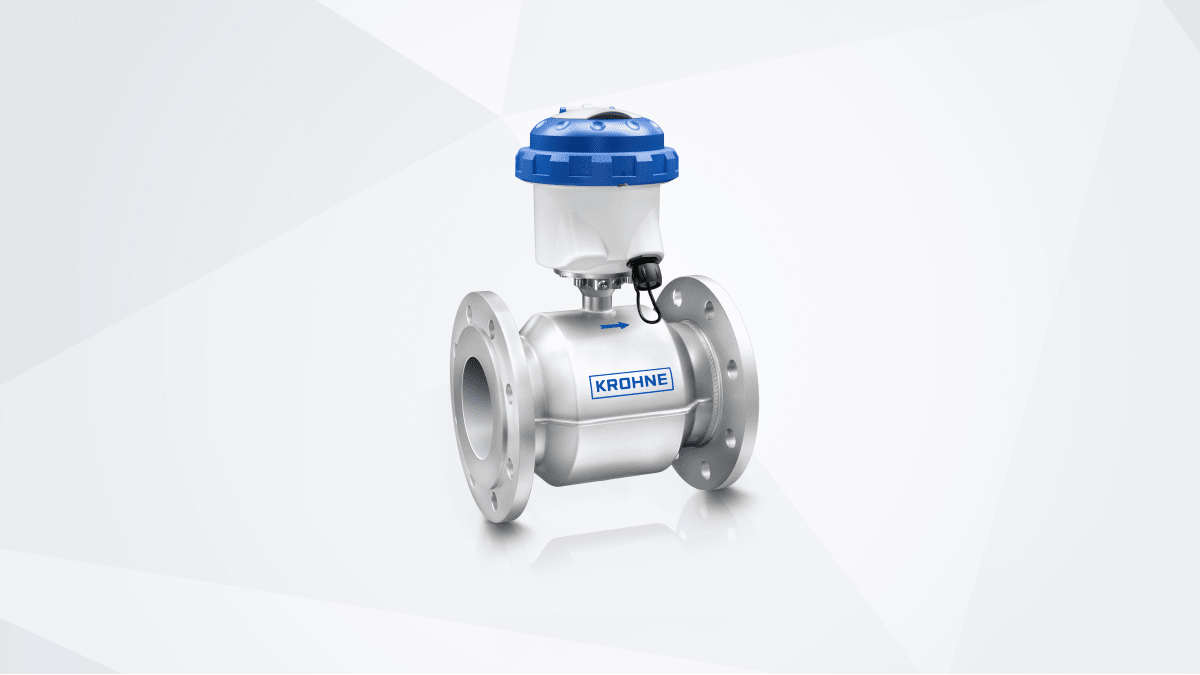

WATERFLUX 3070

Electromagnetic flowmeter for potable water district metering and certified custody transfer applications.

The WATERFLUX 3070 is a Krohne electromagnetic flowmeter engineered for accurate measurement in potable water distribution networks and legal-for-trade custody transfer scenarios. Featuring Rilsan® polyamide liner protection, it operates reliably across -5 to +70°C and pressures up to 16 bar, with flexible connection options from DN25 to DN600 (1–24" ASME). Comprehensive certifications including MI-001, OIML R49, DVGW, NSF, and WRAS ensure compliance with international metrology and drinking water standards. Discrete pulse/status outputs and Modbus RTU digital communication enable seamless integration into SCADA and district metering infrastructure.

Specifications

Product type: Flowmeter
Product family name: WATERFLUX
Product positioning: For district metering of potable water and custody transfer (CT) measurement
Measurement principle: Electromagnetic
Measured media: Liquids
Process pressure: max. 16 barg/230 psig
Process temperature: -5…+70°C/+23…+158°F
Liner: Polyamide polymer 11 (Rilsan®)
Flange connections: EN (1092-1): DN25…600 ASME (B 16.5): 1…24" JIS (B 2220): 25…600A
Thread connections: Male: G1, G1½, G2
Inlet run: 0D
Outlet run: 0D
Certificates/Approvals Custody transfer (CT): MI-001, MI-004, OIML R49, Cooling
Certificates/Approvals Potable Water: DVGW, NSF, TZW, KTW, WRAS, KIWA, ACS
Discrete outputs: Pulse, Status
Digital outputs: Modbus RTU
