8000-SAN

The Klay Instruments 8000-SAN is a precision level transmitter engineered for hygienic and sanitary applications across demanding process environments. Featuring a flush diaphragm design with multiple connection options (flanged, threaded, and hygienic interfaces) and premium materials including AISI 316L stainless steel with optional Hastelloy C, Tantalum, or gold-plated diaphragms, it delivers ±0.2% accuracy across a 0.04–80 bar range. The unit operates reliably from -20 °C to +100 °C (with high-temperature option to 280 °C) and offers 4:1 turndown capability, with internal zero and span adjustment for flexible field commissioning.

Specifications

Measuring range min. max.

0,04…80 bar

Process temperature

-20 °C…+100 °C (145 °C /45 min), option HT max. 280 °C

Accuracy

0,2 % of adjusted span

Process connections

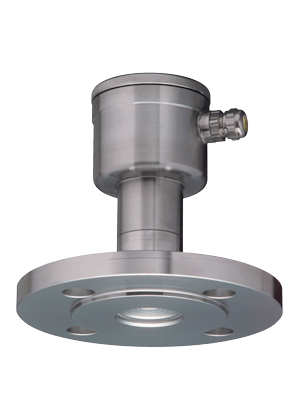

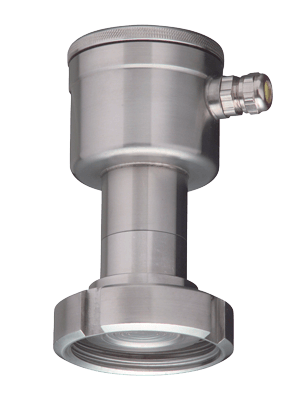

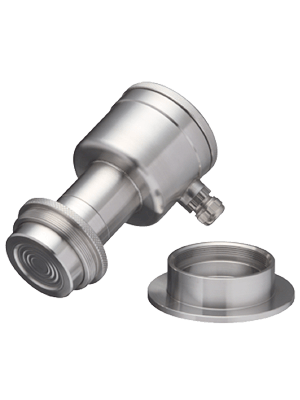

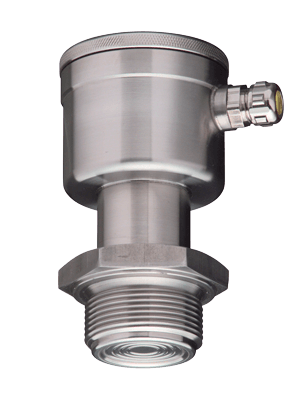

Hygienic connections, flanges and threaded connections, all with flush diaphragm

Turn down

4:1

Output

4-20 mA, 2-wire

Adjustment

Zero and span internally adjustable

Power supply

12 - 36 Vdc (Ex: 13 - 26,5 Vdc)

Protection

IP66 (option IP68)

Ambient temperature

-30 °C...+70 °C

Diaphragm material

AISI 316L, option Hastelloy C, Tantalum or Gold plated

Wetted parts

AISI 316L

Electronics housing

AISI 304, option AISI 316
