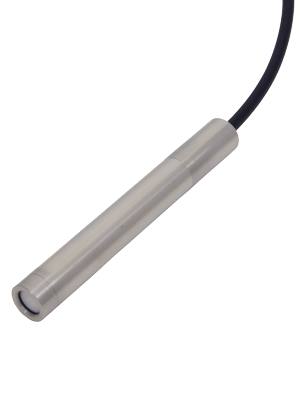

AquaCer-I
Precision ceramic level transmitter (0.1–5 bar) with remote configurability and IP68 protection for demanding process environments.
The AquaCer-I delivers 0.1% measurement accuracy across a 0.1–5 bar range with a microprocessor-based design enabling remote recalibration via HART protocol. Constructed from AISI 316L stainless steel with a capacitive ceramic diaphragm and Viton sealing, it withstands process temperatures from –10 °C to +70 °C while maintaining IP68 ingress protection. Flexible connectivity options—including 4–20 mA two-wire output, TTL signalling, and multiple threaded/flanged connection formats—integrate seamlessly into existing automation systems, powered by 12–36 Vdc.
Specifications
- Measuring range min. max.
- 0,1…5 bar
- Process temperature
- -10 °C…+70 °C
- Accuracy
- 0,1 % of adjusted span
- Process connections
- Cable hanger, threaded and flanged connections
- Output
- 4-20 mA, 2-wire (option HART protocol) TTL Output
- Adjustment
- With HART protocol using PC or Hand Held Terminal
- Power supply
- 12 - 36 Vdc
- Protection
- IP68
- Diaphragm material
- Capacitive ceramic measuring cell
- Sensor body
- AISI 316L
- Sensor sealing
- Viton O-ring
- Cable material
- Polyurethane (PUR) optional PE or Hytrel
