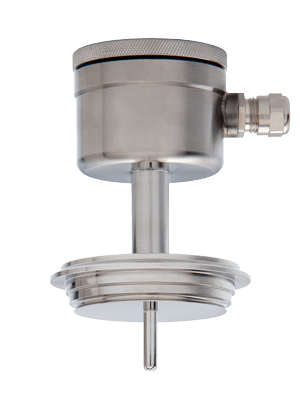

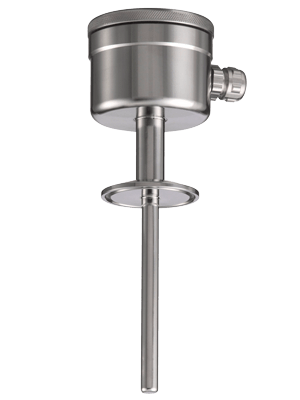

Pt100

Klay Instruments Pt100 sensors deliver precise temperature monitoring across industrial processes with measuring ranges from -50 °C to +400 °C. Choose from 3- or 4-wire configurations with accuracy to 1/10 DIN class, multiple insertion diameters (3–20 mm), and lengths up to 4 m to suit any application. Rugged stainless steel construction (AISI 316 wetted parts) with IP65/IP68 protection ensures reliable performance in harsh environments. Optional head-mounted transmitters provide 4-20 mA output with ATEX, HART, Profibus PA, or IO-Link integration for seamless system connectivity.

Specifications

Measuring range sensor

-50 °C…+200 °C or -200 °C…+400 °C

Pt100

3- or 4-wire single or duplex, 1/3 DIN class B, option 1/5 or 1/10 DIN

Insertion dimensions

Diameter 3….20 mm, length 5 mm…4 m

Process connections

Threaded, hygienic connections EHEDG en 3A, flanges

Output

3- or 4-wire Pt100 or head mounted transmitter

Head mounted transmitter

4-20 mA 2-wire (option ATEX Ex-ia, HART protocol, Profibus PA, IO-Link)accuracy 0,1 %

Electronics housing

AISI 304 with bajonet or scew cover

Protection

IP65 and IP68 (screw cover)

Ambient temperature

-20 °C...+70 °C

Wetted parts

AISI 316, other materials on request

Options

Exchangeable element, extended neck length

Special designs

F.e. duplex housing with 2 transmitters, ambient sensors, angled insertion, bendable insertion
