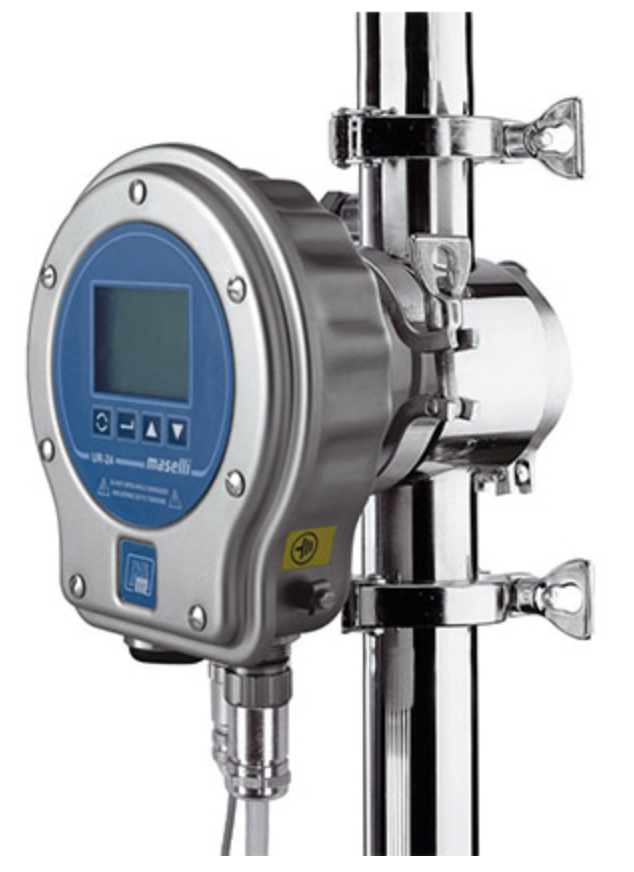

UR24 - In-line process refractometer

The UR24 is a stand-alone digital refractometer built for straightforward in-line or in-tank installation, giving continuous, high-accuracy concentration readings in Brix, nD or % concentration. Its optical sensing element requires no recalibration after commissioning and is housed in an IP67-rated stainless-steel body suited to demanding industrial environments. A user-programmable scale and configurable analog or digital output make it easy to integrate into process control systems across food, chemical, textile and petrochemical applications.

Specifications

Application:

Measurement of liquid concentration in process lines in Food, Chemicals, Textiles, Petrochemical industries, etc. in continuous or batch plants.

Measurement scales:

“BRIX” or “USER”; the “BRIX” scale refers to the nD/Bx ICUMSA (1974) conversion tables; the “USER” scale can be configured at the time of the order

Response time:

1.8 seconds

Product temperature during measuring:

-5 °C…+105 °C with automatic compensation of temperature measured by Pt100. Special version for temperatures up to 140 °C

Maximum temperature during sanitization:

125 °C (257 °F) x 30 min or 145 °C (293 °F) x 30 min for the “LP” version

Response time to variations in temperature:

2’/10 °C (18 °F).

Relative Line Pressure:

max. 10 bar (145 psi) at 20 °C (68 °F) max. 8 bar (116 psi) at 100 °C (212 °F) Special configuration for pressures till 25 bar (362 psi) at 100 °C (212 °F)
